United Boulevard · Mayfair · Pacific Reach · Lougheed and Coquitlam Centre towers

Commercial Garage Door Installation Coquitlam

Coquitlam splits into big-box distribution along United Boulevard, mid-size industrial in Mayfair and Pacific Reach, auto dealers on Lougheed and a fast-growing wall of strata towers at Burquitlam, Lougheed and Coquitlam Centre. We install dock packages for the first, insulated sectional for the second, full-view doors for the third and rolling grilles with high-cycle operators for the fourth.

Dock packages for United Boulevard
Sectional for Mayfair and Pacific Reach
Parkade grilles for the SkyTrain towers
Installed and serviced by one crew

Call (604) 206-5727 Try doors on a photo of your building Request a quote

Commercial Garage Door Installation Coquitlam: who we are and what we do

Custom Commercial Garage Doors Ltd installs new and replacement commercial garage doors across Coquitlam, BC: dock doors with levelers and seals along United Boulevard, insulated sectional doors in the Mayfair and Pacific Reach industrial areas, and rolling grilles with high-cycle operators in the Lougheed, Burquitlam and Coquitlam Centre parkades. Amarr, Hörmann and Raynor doors with LiftMaster, Manaras and GDI operators.

The commercial garage door installation Coquitlam retailers along United Boulevard ask for is a dock position: door, high-lift track, operator, leveler, seal and restraint quoted line by line and replaced one position at a time so receiving keeps running.

This page covers Coquitlam specifically. The door types, brands and the full picker live on our commercial garage door installation hub, and existing doors in Coquitlam are handled on our Coquitlam commercial garage door repair page.

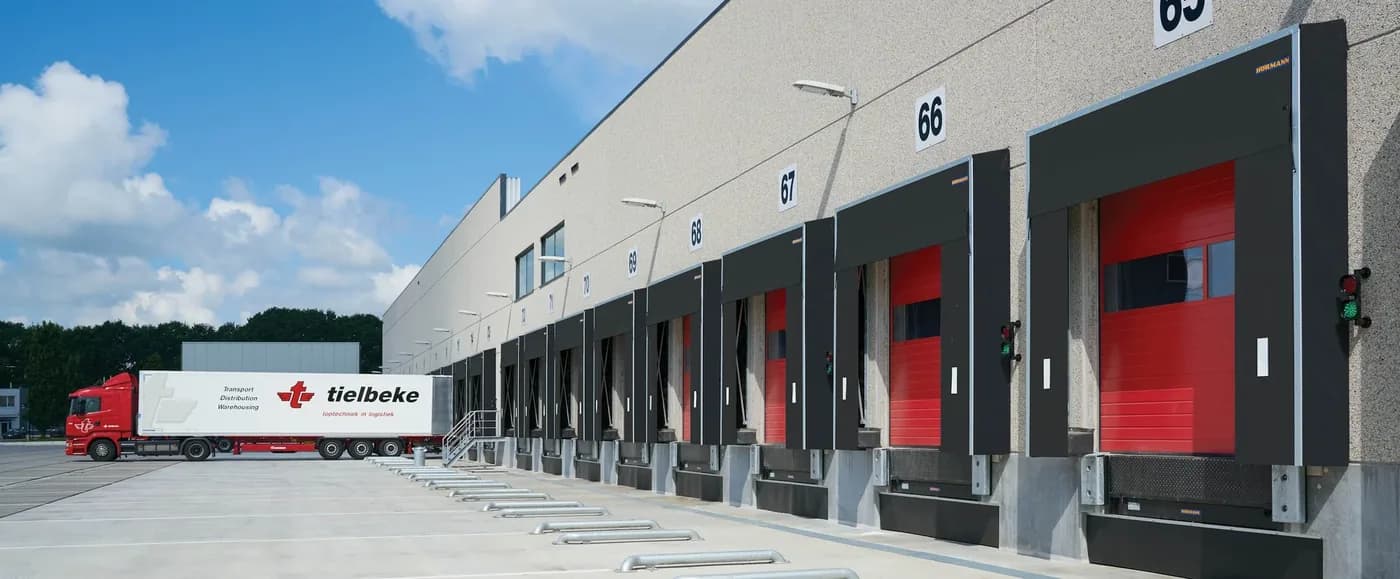

Commercial Garage Door Installation Coquitlam: Hörmann loading dock with levelers and seals of the type installed on United Boulevard distribution buildings

Coquitlam areas we install in

Coquitlam is long and thin, with the industrial land along the Fraser and Brunette and the towers along the SkyTrain line. The door follows the building.

United Boulevard. Big-box retail with distribution centres behind them, furniture showrooms and fabrication shops on the Burnaby border. Multiple dock positions per building cycling all day, so dock doors, high-lift track, levelers, seals and restraints are specified together.
Mayfair industrial area (Mariner Way and Austin Avenue). Established 1970s and 1980s light industrial: contractors, auto shops, food wholesalers. Grade doors with limited headroom, odd sizes, and operators that need to run on 115 V single phase.
Pacific Reach and the Fraser Mills area. Newer business-park buildings off King Edward and Lougheed, and the redevelopment along the river. Insulated sectional with vision lites on the units, dock doors on the larger buildings.
Lougheed Highway auto row. Dealerships between Brunette and Schoolhouse with service bays and showrooms: full-view aluminum on the front, insulated sectional on the shop side.
Burquitlam, Lougheed and Coquitlam Centre towers. High-rise strata around the Evergreen Line stations. Parkade entries cycle past 100 times a day, which calls for a rolling grille or steel gate on a 10,000-cycle operator with loop detection and safety edges.
Westwood Plateau and Burke Mountain. Townhouse strata and ground-floor retail where a rolling steel service door or a smaller sectional door on a medium-duty operator is the right fit.

Door types that fit Coquitlam buildings

Dock doors for United Boulevard

Hörmann 440U/450U or Amarr 2742/2743 polyurethane sectional sized to the dock opening, with high-lift track where trailers back under the header, and Hörmann dock equipment: HLS2-P hinged-lip or HTL2 tapered-lip levelers, DSL seals or Model 100/200 cushion seals, restraints and LED dock lights.

Sectional for Mayfair and Pacific Reach

Amarr 2442 or 2742 polyurethane for heated space, Amarr 2402 heavy-duty ribbed or 2732 polystyrene for an unheated shop, Raynor ThermaSeal TM200 where a thermal break matters, all built to the measured opening with low-headroom track where the ceiling is tight.

Amarr 4300 rolling grille for Burquitlam and Coquitlam Centre parkade entries

Rolling grilles for the towers

Amarr 4300 rolling grille for ventilated parkade entries; Amarr 4000 or 4100 rolling steel where the entry needs to close solid. Both coil into a hood above the opening and need no ceiling track.

Full-view aluminum for Lougheed dealers

Hörmann 720A and 750A, Amarr 3552 and Raynor AlumaView AV200/AV300 with clear, tinted, frosted or insulated glazing by section.

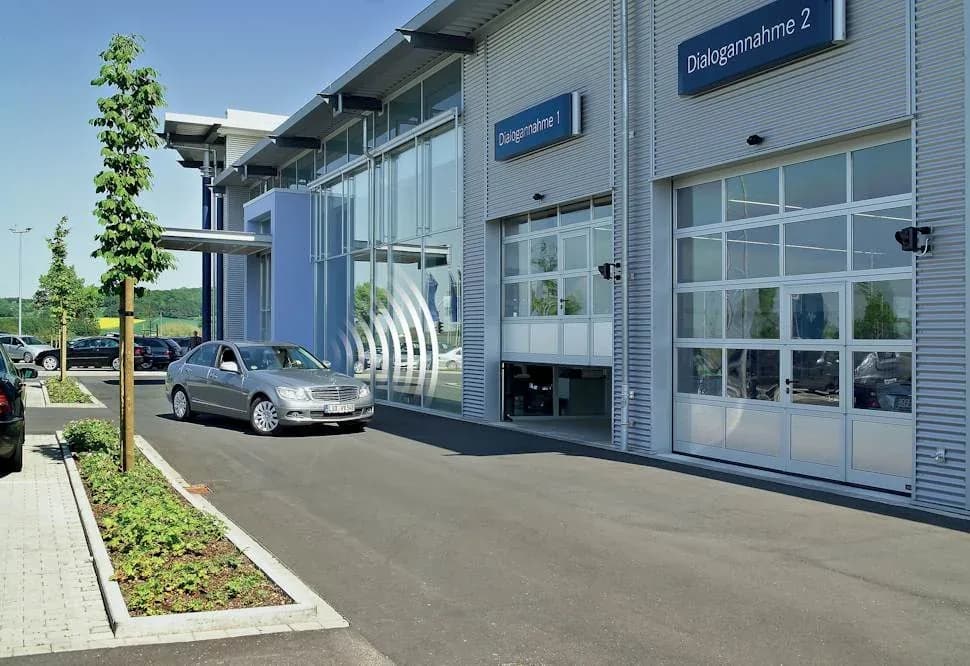

Hörmann 720A full-view aluminum doors on a dealership service bay, as installed on Lougheed Highway in Coquitlam

Brand pages: Amarr commercial doors, Hörmann 450U, Amarr 2743. Every model named here is one we are a dealer for and service afterward.

Operators we fit on Coquitlam doors

A United Boulevard dock door and a Coquitlam Centre parkade gate both need a heavy-duty operator, but for opposite reasons: the dock door moves a heavy insulated panel on high-lift track, the gate cycles a light grille thousands of times. We size LiftMaster, Manaras and GDI operators to the door weight, lift type and daily cycles; model guides are on the operator installation page.

GDI JHMG-VC

10,000 cycles a day for the Burquitlam and Coquitlam Centre parkade gates.

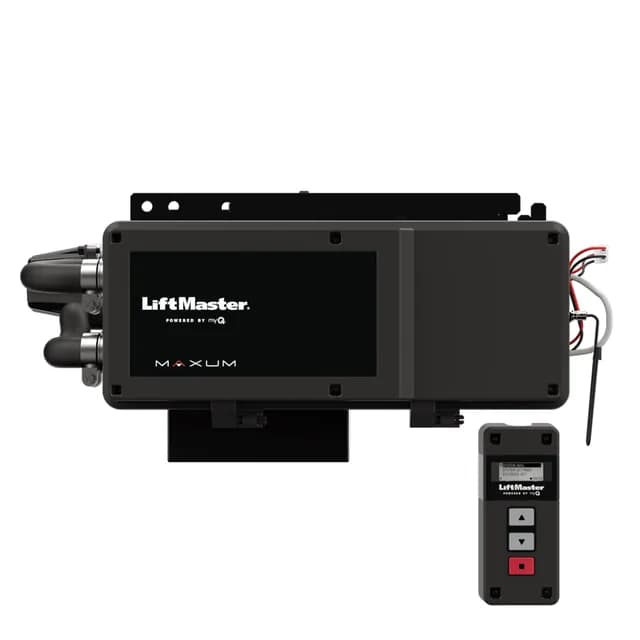

LiftMaster MAXUM DC

TDC, JDC, JHDC and RJDC DC commercial operators with built-in Wi-Fi for dealerships and business parks that want remote status.

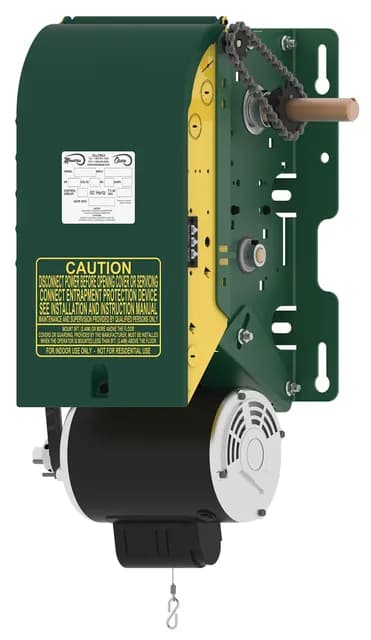

Manaras OPJ / OPH / OHJ

Heavy-duty jackshaft with floor-level disconnect, or with Hoist-a-Matic chain hoist, for United Boulevard dock doors.

Getting to Coquitlam from our Richmond shop

From River Road in Richmond we take Highway 91 over the Alex Fraser, Highway 91A across the Queensborough Bridge and Brunette Avenue to United Boulevard and Mayfair, usually 40 to 55 minutes. Pacific Reach, Lougheed and the Coquitlam Centre towers are 45 to 60 minutes via Highway 1 and Brunette or Lougheed. Burke Mountain and Westwood Plateau add ten to fifteen. We book measures around the Port Mann and Brunette rush and give you a firm window. For a failed door on an existing building see commercial garage door repair in Coquitlam.

Custom sizes and replacement doors in Coquitlam

Mayfair openings were cut forty years ago for doors that no longer exist, and United Boulevard docks often have headers that only make sense with high-lift track. We measure width, height, headroom, side room and backroom on every opening, check the framing and the floor, and order the door and track to those numbers, with vision lites, pass doors, glazing and colour chosen before the order goes in. On a replacement the old door, track and springs come down and are hauled away, jambs are repaired, and the new door and operator go up on the same visit where the structure allows, scheduled around your receiving hours or the parkade rush.

For the SkyTrain-corridor towers, commercial garage door installation Coquitlam strata councils need is a parkade grille or gate on a high-cycle operator with loop detectors and safety edges, installed between the morning and evening rush.

Want to see it first? Upload a photo of the building to the commercial door designer, line up the opening and try the door types above in your own colours; the 4K download is handy for the owner, the landlord or the strata council. After the install the same crew looks after the door: maintenance programs, spring replacement, cable and track work and 24/7 emergency repair. If a vehicle has hit the door or the header, our impact repair and ICBC property damage pages explain how that is handled.

Commercial Garage Door Installation Coquitlam FAQ

Who does commercial garage door installation in Coquitlam, BC?

Custom Commercial Garage Doors Ltd, a Richmond-based commercial-only door company. We install Amarr, Hörmann and Raynor doors with LiftMaster, Manaras and GDI operators across Coquitlam and the Tri-Cities and service them afterward. Call (604) 206-5727.

Can you replace dock doors on United Boulevard without stopping deliveries?

Yes. Dock positions are replaced one at a time around your receiving hours, and the leveler, seal and restraint are specified with the door so each position is finished in one visit.

Do you install parkade gates for Burquitlam and Coquitlam Centre towers?

Yes. Rolling grilles and steel gates on high-cycle operators such as the GDI JHMG-VC, with loop detectors and safety edges, for strata and commercial parkades along the Evergreen Line.

My Mayfair shop has an odd-size opening with low headroom. What can you install?

An insulated sectional built to the measured opening on low-headroom track, with a trolley such as the Manaras OTH that needs only 6.25 inches of headroom, or a jackshaft operator mounted beside the shaft.

Do you also cover Port Coquitlam and Port Moody?

Yes. The Shaughnessy and Oxford industrial areas in Port Coquitlam and the Murray Street and Ioco Road buildings in Port Moody are part of the same trips.

Other installation and repair areas

We install across the Lower Mainland from one shop in Richmond. The hub page covers commercial garage door installation in Vancouver; the city pages below cover the rest.

Ready to spec a new door in Coquitlam?

Send us the opening size and a photo, or use the door designer and send the picture straight from it. We quote commercial garage door installation across Coquitlam and the Tri-Cities, from United Boulevard and Mayfair to the Lougheed and Coquitlam Centre towers. Call (604) 206-5727 or send the details and we will book the site measure.

Call (604) 206-5727 Open the door designer Request a quote
