LiftMaster operator repair — all residential and commercial models serviced across Metro Vancouver
LiftMaster is the most widely installed garage door operator brand in Canada — from residential belt and chain drives through to industrial MAXUM DC and jackshaft commercial operators. CCGDS diagnoses and repairs every LiftMaster model listed on this page, residential and commercial, with common parts on the truck. Call 604-206-5727 for same-day service across Metro Vancouver.
LiftMaster Commercial Chain & Trolley Operators
Commercial Trolley
CSW200UL
Standard commercial chain-drive trolley. Most widely installed commercial operator in BC. Rated for 24+ cycles per day.
DriveChain
HP1/2
Voltage115/230V
Cycles/day24+
Header room12 in.
Commercial Belt-Assist Trolley
CSW24UL
Belt-assisted commercial trolley with softer start/stop. Lower noise profile — popular in parkade and mixed-use buildings.
DriveBelt/Chain
HP1/2
Voltage115/230V
Door widthUp to 18 ft
NoiseLow
PHOTO COMING
Heavy-Duty Trolley
1346-1/2
Mid-range commercial chain-drive trolley. Common on single-bay commercial doors in auto shops and light warehouses.

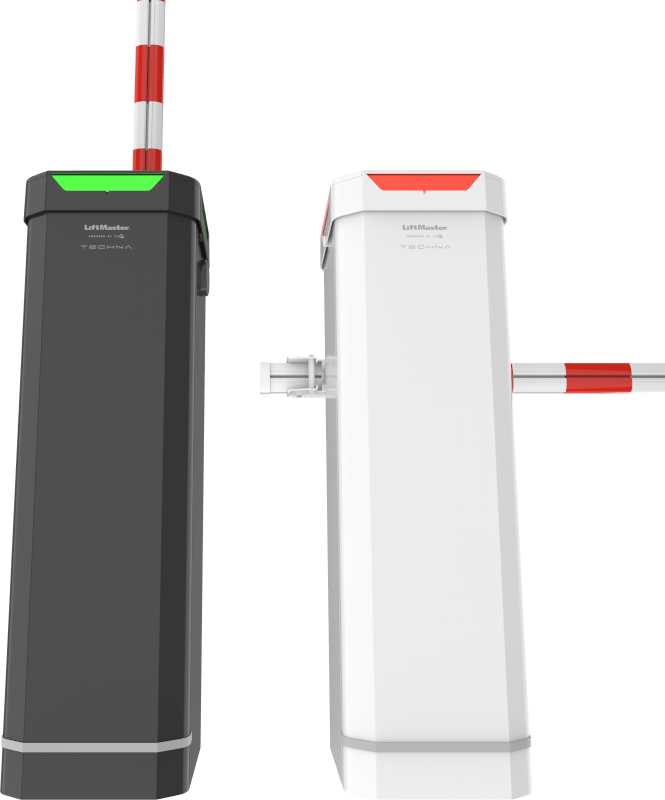

Commercial slide/barrier operator for parking facilities and secured commercial entry. UL 325 listed.
TypeSlide/barrier
HP1/2
Voltage115/230V
DutyCommercial
RatingUL 325
LiftMaster Residential Operators
We service all LiftMaster residential models — belt drive, chain drive, wall mount, and direct drive — for single-family homes and strata units across Metro Vancouver. Each card below includes a PDF manual link.
LiftMaster Residential Belt Drive
PHOTO COMING
Residential Belt Drive
87504-267
Premium belt drive with built-in battery backup. Whisper-quiet, ideal for attached garages. myQ smart connectivity.
DriveBelt
HP3/4
Battery backupBuilt-in
myQYes
Security+2.0
PHOTO COMING
Residential Belt Drive
87802
Secure belt drive DC motor with battery backup. Smooth and quiet with Security+ 2.0 rolling code encryption.
DriveBelt
MotorDC
HP3/4
Battery backupBuilt-in
EncryptionSecurity+2.0
PHOTO COMING
Residential Belt Drive
84505R
Secure+ 2.0 belt drive, 1/2 HP DC motor. Mid-range residential with myQ and Security+ 2.0.
DriveBelt
MotorDC
HP1/2
myQYes
Security+2.0
PHOTO COMING
Residential Belt Drive
84602R
Secure+ 2.0 belt drive, 3/4 HP DC motor. Higher torque for heavier residential doors. myQ enabled.
DriveBelt
MotorDC
HP3/4
myQYes
Security+2.0
PHOTO COMING
Smart Belt Drive
B6765
Ultra-quiet belt drive with built-in LED lighting. Smart home compatible. Good for strata or noise-sensitive environments.
DriveBelt
MotorDC
HP3/4
LED lightBuilt-in
SmartYes
PHOTO COMING
Belt Drive with Camera
B4613T
Value belt drive with timer-to-close feature. Battery backup optional. Security+ 2.0.
DriveBelt
HP1/2
Timer-to-closeYes
Security+2.0
BatteryOptional
LiftMaster Residential Chain Drive
PHOTO COMING
Residential Chain Drive
8160W-267
Chain drive DC motor with battery backup. Standard residential choice for heavier or older doors. myQ compatible.
DriveChain
MotorDC
HP1/2
Battery backupBuilt-in
myQYes
PHOTO COMING
Residential Chain Drive
8165W
Chain drive residential opener. Simple and reliable. Security+ 2.0 rolling code.
DriveChain
HP1/2
Security+2.0
Remotes2 included
KeypadOptional
PHOTO COMING
Residential Chain Drive
8155W
Entry-level residential chain drive for single-car garages with light-duty doors.
DriveChain
HP1/2
Voltage115V
DutyResidential
Security+1.0
PHOTO COMING

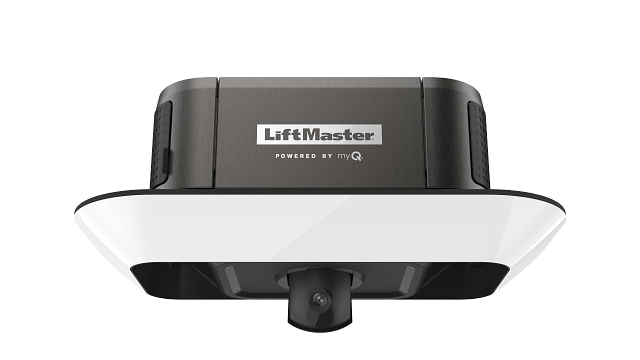

Smart Chain Drive with Camera
C870
Smart chain drive with built-in Wi-Fi and 1080p camera. Monitor and control from the myQ app.
DriveChain
HP3/4
Wi-FiBuilt-in
Camera1080p
AppmyQ
LiftMaster Residential Wall Mount & Direct Drive
PHOTO COMING
Residential Wall Mount
8500WL
Elite side-mount with LED panels. Clears full ceiling. Popular in new builds and strata units.
Commercial myQ internet gateway. Enables remote open/close, alerts, and access control integration.
ConnectivityWi-Fi/LTE
OperatorsMultiple
AppmyQ Business
IntegrationAPI available
PHOTO COMING
Commercial Keypad
KPW250
Outdoor commercial keypad for personnel access. PIN-based, up to 100 codes. Backlit, IP44 rated.
CodesUp to 100
BacklitYes
WeatherIP44
CompatibleAll LiftMaster commercial
PHOTO COMING
Remote
892LT — 2-Button Remote
Two-button mini remote. Security+ 2.0 rolling code. Works with all current LiftMaster operators.
Buttons2
ProtocolSecurity+2.0
Frequency315 MHz
Battery3V CR2032
Remote
893MAX — 3-Button Remote
Three-button remote for controlling multiple doors. Security+ 2.0. Standard commercial site remote.
Buttons3
ProtocolSecurity+2.0
Battery3V CR2032
Frequency315 MHz
LiftMaster Operator Repair — What We Fix
The most frequent LiftMaster call is a tripped overload — the operator detected excessive force and shut down. This usually means the door is out of balance, a spring is broken, or the door is binding in the track. We find and fix the underlying door issue before resetting the operator. A reset without addressing the root cause will trip again.
Logic board failures are the second most common issue. The 1HPCTL board and its variants handle timing, safety monitoring, and remote communication. A failing board causes erratic operation — random reversals, no remote response, or a stuck learn mode. LiftMaster logic boards are usually available locally and can be swapped on the same visit.
LiftMaster myQ — Remote Monitoring & Access Control

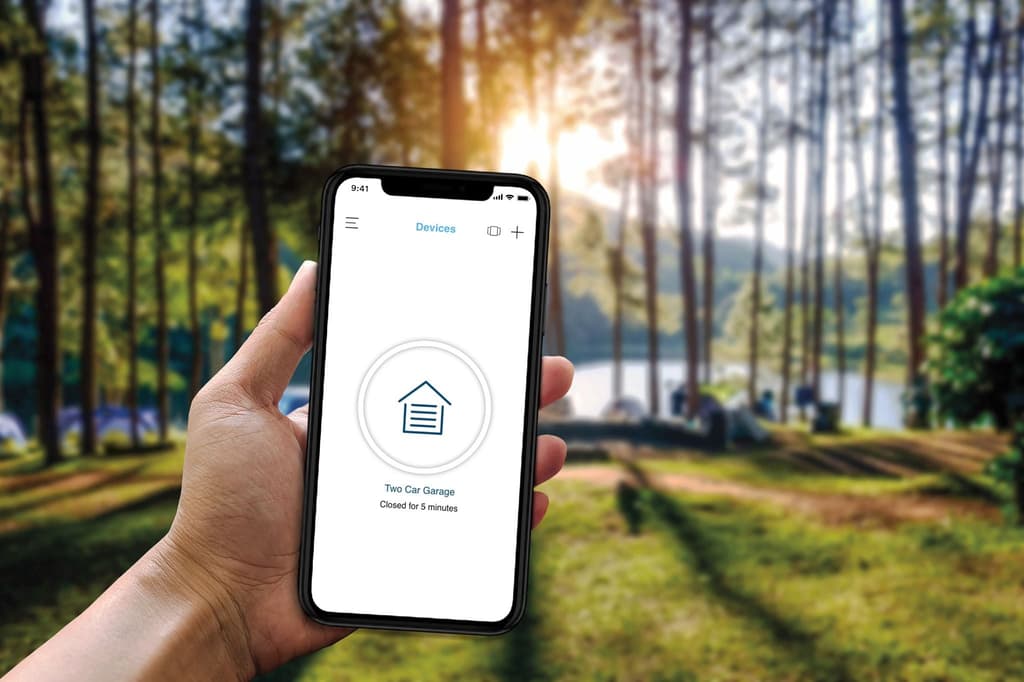

Current LiftMaster operators include myQ connectivity for remote monitoring and access control integration via the LNK750 commercial hub or the built-in Wi-Fi on residential models. If your myQ-enabled operator is not connecting or reporting incorrect door status, the issue is usually the hub or network connection, not the operator itself. We diagnose on-site and advise whether the hub needs replacing or the Wi-Fi/LTE connection needs reconfiguration.
Service Across Metro Vancouver
We stock LiftMaster parts — logic boards, drive sprockets, chain assemblies, photo eyes, contact edges, and remotes — for all models listed on this page. Service covers Richmond, Vancouver, Burnaby, Surrey, Delta, Coquitlam, Langley, North Vancouver, Ladner, and New Westminster.
Frequently Asked Questions
LiftMaster commercial models we install and service in Metro Vancouver
Every model below is one we carry parts for and service on a same-day call. Specifications are the manufacturer’s own figures for the unit — click through for the full spec sheet, common failure modes, and what a replacement actually costs in this market.

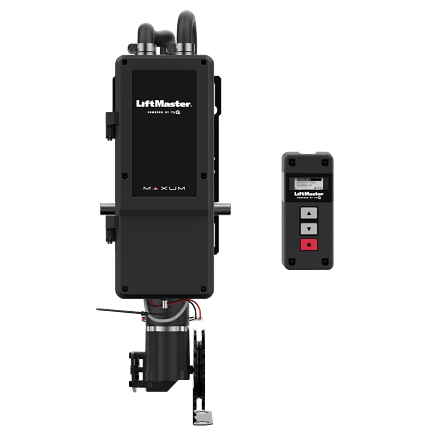

The MAXUM trolley variant, for buildings that cannot take a jackshaft mount.
Why did my LiftMaster CSW200UL stop working?
The most common causes are: tripped overload protector (door out of balance or binding), failed logic board, stretched drive chain, or motor burnout. The diagnostic LED blinks a fault code — call 604-206-5727 and we can decode it over the phone.
How long does LiftMaster commercial operator repair take?
A tripped overload with balance correction: one to two hours. Logic board swap: two to three hours. Motor replacement: two to four hours. Full operator replacement on a standard commercial door: half a day.
Does LiftMaster make a jackshaft operator for high-ceiling warehouses?
Yes. The RJ011, JDC MAXUM, and JHDC MAXUM are jackshaft operators that mount on the torsion spring shaft, preserving full ceiling clearance. Standard choice for warehouses with overhead racking near the door.
Can you repair LiftMaster residential openers in Vancouver?
Yes. We service all LiftMaster residential models — belt drive, chain drive, and wall mount — for single-family homes and strata units across Metro Vancouver. Call 604-206-5727.
Where can I download the PDF manual for my LiftMaster?
Each model card on this page has a PDF Manual link pointing to the LiftMaster product or support page. You can also visit liftmaster.com/support/manuals and search by model number.
Who does LiftMaster repair in Vancouver?
CCGDS services all LiftMaster commercial and residential operators across Greater Vancouver and the Lower Mainland. Call 604-206-5727 for same-day or emergency repair.
Call for LiftMaster repair in Vancouver: 604‑206‑5727 — same-day response, parts on the truck, honest quote before any work starts.
