Commercial Garage Door Installation Surrey

Surrey has more new industrial floor space going up than anywhere else in the region, and it is spread across very different pockets: brand-new tilt-up at Campbell Heights, established logistics at Port Kells and along 176 Street, older shops around Newton, oversize equipment bays in Cloverdale and new towers at City Centre. We install the door each one needs.

New-build and tenant-improvement doors
Oversize openings for equipment dealers
Dock packages for Port Kells
Parkade gates for City Centre

Call (604) 206-5727 Try doors on a photo of your building Request a quote

Commercial Garage Door Installation Surrey: who we are and what we do

Custom Commercial Garage Doors Ltd installs new and replacement commercial garage doors across Surrey, BC, from tilt-up warehouses in Campbell Heights and Port Kells to equipment dealerships in Cloverdale, auto shops in Newton and strata parkades in City Centre. We measure, order Amarr, Hörmann or Raynor doors to the opening and install them with LiftMaster, Manaras or GDI operators.

The commercial garage door installation Surrey landlords ask about most is a tenant-improvement door in Campbell Heights: a new or upgraded insulated sectional with vision lites, a medium-duty operator, and a written quote that lists door model, insulation, glazing, track, operator and accessories line by line.

This page covers Surrey specifically. The door types, brands and the full picker live on our commercial garage door installation hub, and existing doors in Surrey are handled on our Surrey commercial garage door repair page.

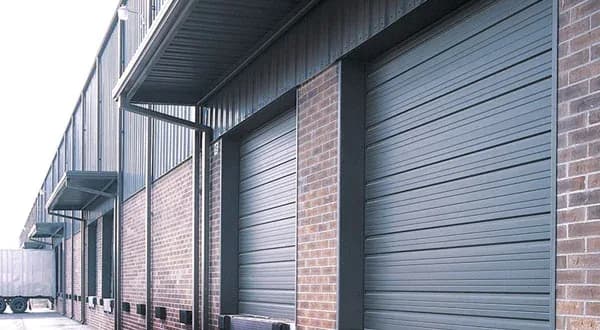

Commercial Garage Door Installation Surrey: Amarr 2402 heavy-duty ribbed steel commercial door of the type installed on Campbell Heights tilt-up units

Surrey areas we install in

Surrey is big enough that the drive time, the building age and the right door all change from one end to the other. These are the pockets we work in and what we usually install there.

Campbell Heights. New tilt-up industrial from the last fifteen years, most of it still being built out. We do a lot of tenant-improvement work here: adding a grade door, upgrading a builder-grade door to an insulated one, or adding a dock position with leveler and seal.
Port Kells and the 176 Street corridor. Established distribution and trucking off Highway 1 and Golden Ears Way. High-cycle dock doors, oversize drive-through bays for tractor-trailers, and operators rated for two-shift use.
Newton and the 96 Avenue industrial zone. Older, denser, less standardised: auto shops, cabinet makers, contractors. Openings vary and headroom is tight, so most installs here are measured-to-fit insulated sectional with low-headroom track.
Cloverdale and the Highway 10 corridor. Farm equipment and trailer dealers with service bays wider than 20 ft and taller than 16 ft. Oversize sectional, rubber roll-up to 50 ft, and full-view aluminum on the showroom side.
Bridgeview and South Westminster. Riverside industrial between the Pattullo and Port Mann bridges, with some of the oldest commercial stock in Surrey and plenty of odd-size openings.
City Centre, Guildford and Fleetwood. New strata and mixed-use towers with resident parkades. Rolling grilles or steel gates on high-cycle operators, with loop detectors and safety edges.
South Surrey and the Grandview corridor. Business parks, breweries and auto dealers around 24 Avenue and 160 Street where full-view aluminum and insulated sectional both show up.

Door types that fit Surrey buildings

Insulated sectional for Campbell Heights and Port Kells

Amarr 2402 and 2402-series heavy-duty ribbed steel for budget-driven tenant work, Amarr 2442/2742 or Hörmann 440U/450U polyurethane where the space is heated, Raynor ThermaSeal TM200 or TM220 where a thermal break matters. All ordered to the measured opening.

Oversize doors for Cloverdale and Port Kells

Hörmann HDXL rubber roll-up handles exterior openings to 50 ft wide, and extra-wide, extra-tall sectional doors are built to the bay for equipment dealers and trailer shops. Amarr Superflex is the flexible, impact-resistant door where forklifts and loaders are in and out all day.

Hörmann HDXL rubber roll-up door for oversize equipment bays in Cloverdale, Surrey

Rolling steel and grilles for City Centre

Amarr 4300 rolling grille or 4000/4100 rolling steel for parkade entries and storefronts; both coil above the opening and need no ceiling track, which suits the tight ramps on new towers.

Full-view aluminum for showrooms and breweries

Hörmann 720A and 750A, Amarr 3552 and Raynor AlumaView AV175/AV200/AV300, with glazing chosen by section.

Hörmann dock levelers and seals for Port Kells dock positions in Surrey

Brand pages: Amarr commercial doors, Hörmann 450U, Amarr 2743. Every model named here is one we are a dealer for and service afterward.

Operators we fit on Surrey doors

New Surrey industrial usually has three-phase power, which opens up operators like the GDI JDMG-LG that run on anything from 115 to 575 VAC, while an older Newton shop on single-phase 115 V gets a LiftMaster MJ or a Manaras OMJ. We match the operator to the door weight, the lift type and how many times a day it cycles; see operator installation for the full line-up.

GDI JDMG-LG

Commercial and medium-duty industrial operator rated 3,200 cycles a day, one motor for 115 to 575 VAC; a natural fit for new tilt-up with three-phase power.

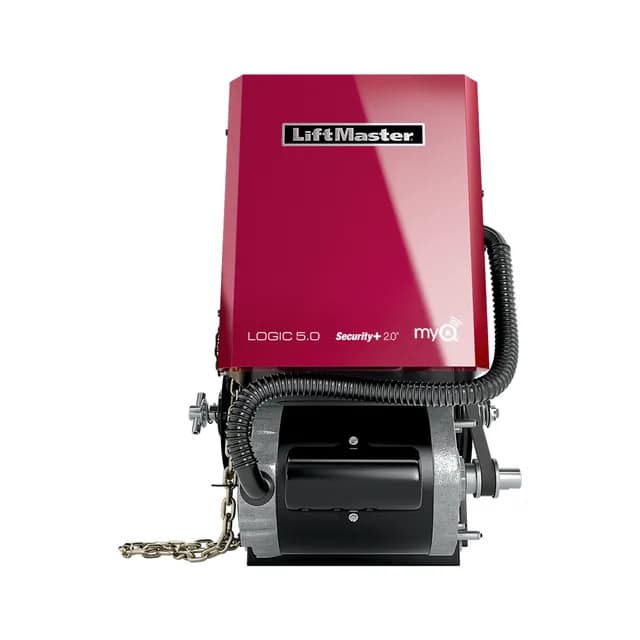

LiftMaster H hoist

Industrial hoist operator, 1/3 to 1 HP, 25 cycles an hour and up to 90 a day, with chain hoist for manual operation if the power drops.

Manaras OSH / OGH

Super-duty and gear-head jackshafts with solenoid brake for Port Kells dock doors cycling more than 80 to 100 times a day.

Getting to Surrey from our Richmond shop

From River Road in Richmond we take Highway 91 over the Alex Fraser Bridge for most Surrey calls: Bridgeview and Newton are about 35 to 50 minutes, Campbell Heights and Cloverdale 45 to 65 via Highway 10, and Port Kells 50 to 70 depending on Highway 1. South Surrey is quicker down Highway 99 through the Massey Tunnel, usually 35 to 50 minutes. We book site measures to avoid the afternoon rush and give you a firm arrival window. For an existing door that has failed, see commercial garage door repair in Surrey.

Tenant improvements, custom sizes and replacements in Surrey

A lot of our Surrey install work is tenant improvement in a new tilt-up: cutting in a new grade door, replacing a builder-grade non-insulated door with a polyurethane one, or adding a dock position complete with leveler and seal. We also replace tired doors in Newton and Bridgeview where nothing is a stock size. Every door is ordered to the opening we measure, including headroom, side room and backroom. On a replacement, the old door, track and springs come down and are hauled away, the jambs are repaired if needed, and the new door and operator go up on the same visit where the structure allows.

For the dealers out on Highway 10, commercial garage door installation Surrey often means an oversize bay: a door built to an opening wider than 20 ft and taller than 16 ft, with the lift type and operator chosen to match.

Want to see it first? Upload a photo of the building to the commercial door designer, line up the opening and try the door types above in your own colours; the 4K download is handy for the owner, the landlord or the strata council. After the install the same crew looks after the door: maintenance programs, spring replacement, cable and track work and 24/7 emergency repair. If a vehicle has hit the door or the header, our impact repair and ICBC property damage pages explain how that is handled.

Commercial Garage Door Installation Surrey FAQ

Who does commercial garage door installation in Surrey, BC?

Custom Commercial Garage Doors Ltd. We are a Richmond-based commercial-only door company installing Amarr, Hörmann and Raynor doors and LiftMaster, Manaras and GDI operators across Surrey, and servicing them afterward. Call (604) 206-5727.

Do you do tenant-improvement door work in Campbell Heights?

Yes. Adding a grade door, upgrading a builder-grade door to an insulated one, or adding a dock position with leveler and seal are regular jobs for us in the new tilt-up buildings there.

Can you install a door wider than 20 ft for an equipment dealership in Cloverdale?

Yes. Oversize sectional doors are built to the measured opening, and Hörmann HDXL rubber roll-up doors go up to 50 ft wide for exterior openings.

Do you install parkade gates for Surrey City Centre towers?

Yes. Rolling grilles and steel gates with high-cycle operators such as the GDI JHMG-VC, plus loop detectors and safety edges, for strata and commercial parkades.

Will the new door come with an operator?

It can. We size the operator to the door weight, lift type and daily cycle count, which for new Surrey industrial with three-phase power often means a GDI JDMG-LG or a LiftMaster industrial J, H or T series.

How do I get a quote for a new door in Surrey?

Send us the opening size and a photo, or use our door designer to try doors on a picture of the building and send it straight to us. We follow up with a site measure and a written line-by-line quote.

Other installation and repair areas

We install across the Lower Mainland from one shop in Richmond. The hub page covers commercial garage door installation in Vancouver; the city pages below cover the rest.

Ready to spec a new door in Surrey?

Send us the opening size and a photo, or use the door designer and send the picture straight from it. We quote commercial garage door installation across Surrey, from Campbell Heights and Port Kells to Newton, Cloverdale and City Centre. Call (604) 206-5727 or send the details and we will book the site measure.
