Manaras Operator Repair Vancouver
Manaras is a Canadian manufacturer based in Quebec, known for their Opera series jackshaft and trolley operators (see also LiftMaster operator repair) — the standard choice for high-ceiling warehouses and industrial loading docks across BC. We repair and service every Manaras model listed on this page, Opera and MEGA series, with common parts on the truck. Call 604-206-5727 for same-day service across Metro Vancouver.
Manaras Opera Jackshaft Operators
Manaras Opera Trolley Operators

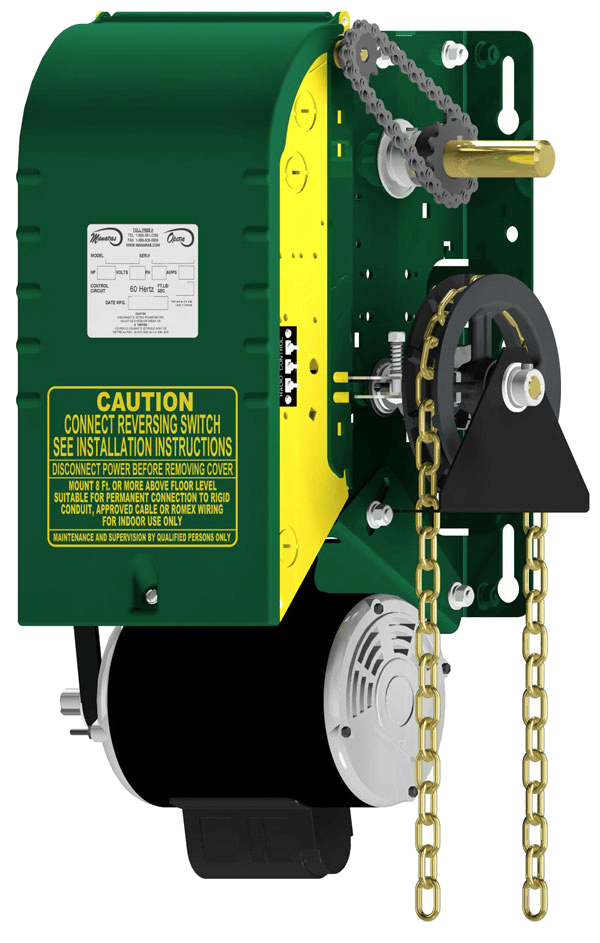

Manaras MEGA Series Jackshaft Operators

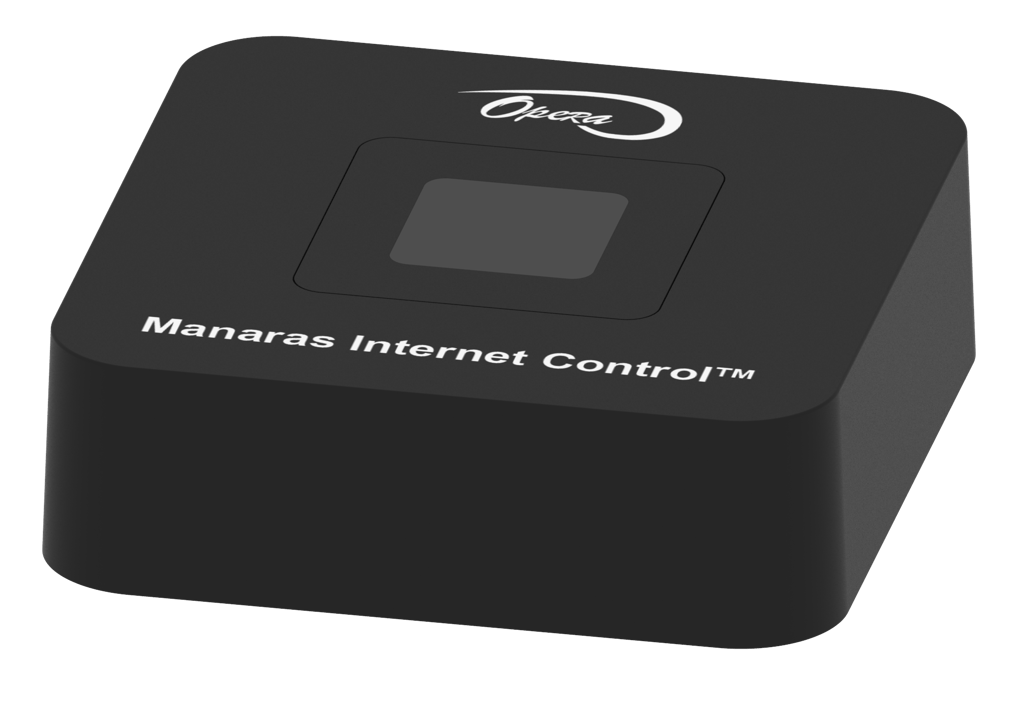

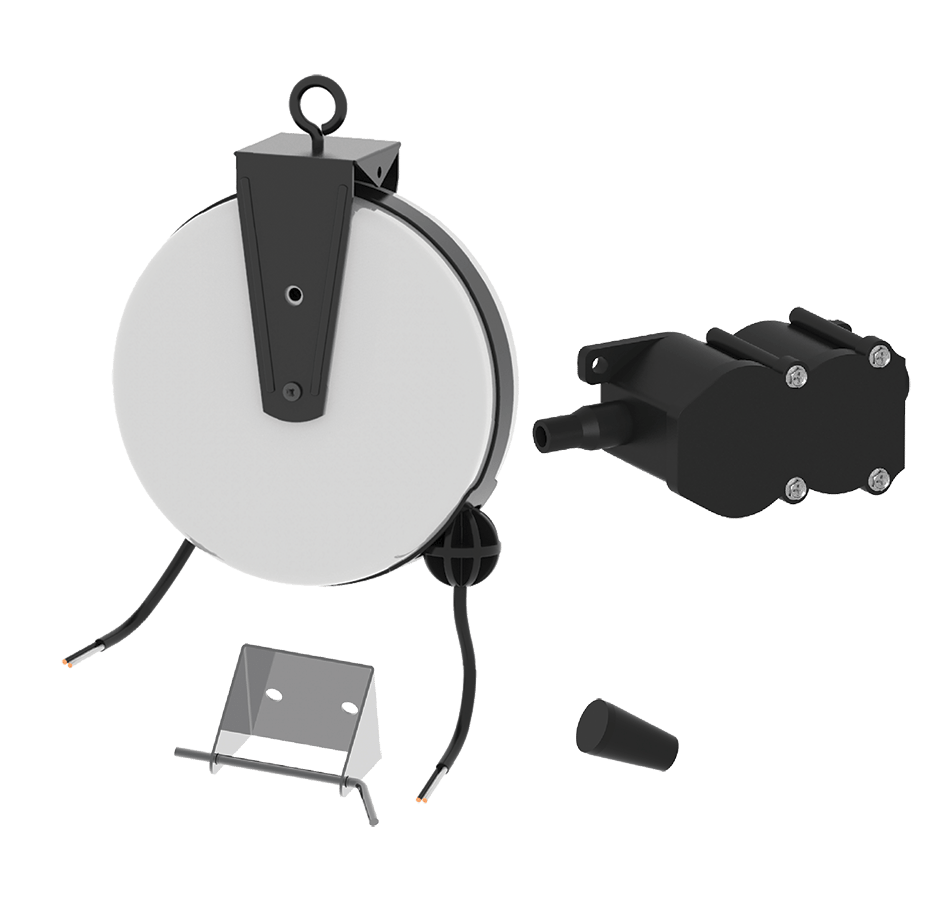

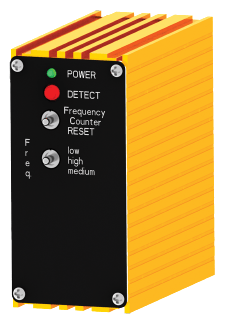

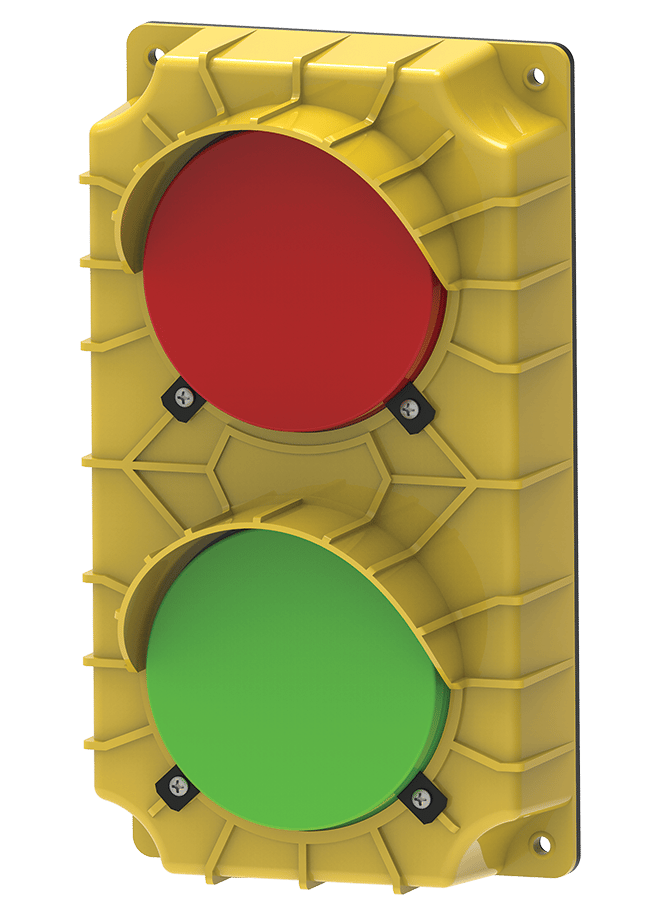

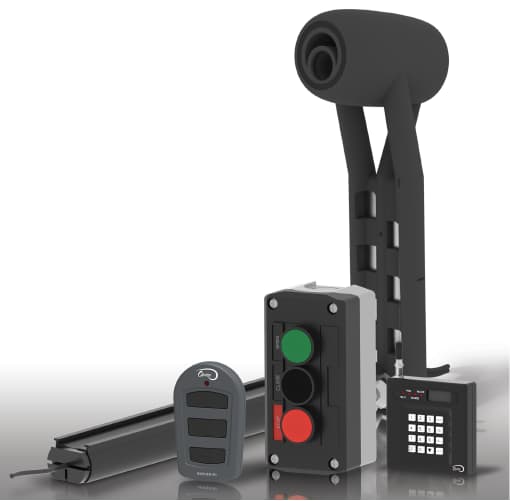

Manaras Accessories & Safety Devices
Manaras Operator Repair — What We Fix
The most common Manaras service call is a reversing clutch that slips or a Hoist-a-Matic brake that fails to hold the door on power loss. The reversing clutch on the OMJ and OPH series is a consumable — it wears with cycle count and needs replacement every few years in high-cycle applications. On OPH and OTBH models, a brake that fails to hold means the solenoid coil or mechanical pawl is worn. Both are field-replaceable parts we carry on the truck.
Control board failures are the second most common issue on Manaras operators. The Opera series control board manages timing, safety device monitoring, and limit switch logic. A failing board may cause the door to stop mid-travel, reverse unexpectedly, or not respond to input. Manaras control boards are sourced through our distributor and typically arrive within two business days.
Manaras Service Across Metro Vancouver
We stock Manaras parts — control boards, reversing clutches, solenoid coils, limit switch assemblies, and safety edges — for all Opera and MEGA series models. Service covers Richmond, Vancouver, Burnaby, Surrey, Delta, Coquitlam, Langley, North Vancouver, Ladner, and New Westminster.
Frequently Asked Questions
What is the difference between Manaras OMH and OPH?
The OMH is medium-duty with 1/2 HP and no brake — suitable for standard commercial doors with balanced springs. The OPH is heavy-duty 3/4 HP with the Hoist-a-Matic brake — the brake holds the door in any position during a power failure, which is critical for cold storage and loading dock applications where an unintended door drop is a safety hazard.
What is the Manaras Hoist-a-Matic brake?
The Hoist-a-Matic is an electromagnetic fail-safe brake built into the OPH and OTBH models. When power is present, the brake releases electrically. On power loss, a spring engages the brake mechanically, holding the door in place. This prevents a heavy door from dropping on a load or personnel when power fails.
How often does the Manaras reversing clutch need replacing?
In a typical commercial warehouse running 30 to 50 cycles per day, the reversing clutch on an OMJ or OPH lasts three to five years. In high-cycle loading dock environments running 100+ cycles per day, expect two to three years. It is a wearing part — not a failure, just maintenance.
Manaras Opera models we install and service in Metro Vancouver
Every model below is one we carry parts for and service on a same-day call. Specifications are the manufacturer’s own figures for the unit — click through for the full spec sheet, common failure modes, and what a replacement actually costs in this market.
| Model | Drive | Motor | Rating | Where it fits |
|---|---|---|---|---|

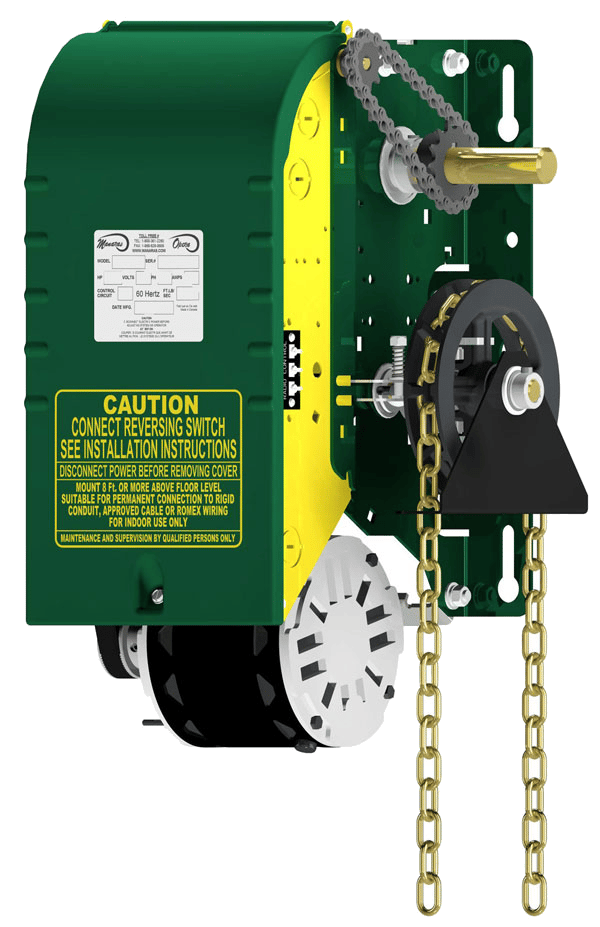

| Manaras OMH | Jackshaft (torsion shaft mount) | ½ HP | 12 cycles/hr · 50 cycles/day | The default jackshaft in most BC warehouses. Hoist-a-Matic lets you lift the door under power during an outage. |

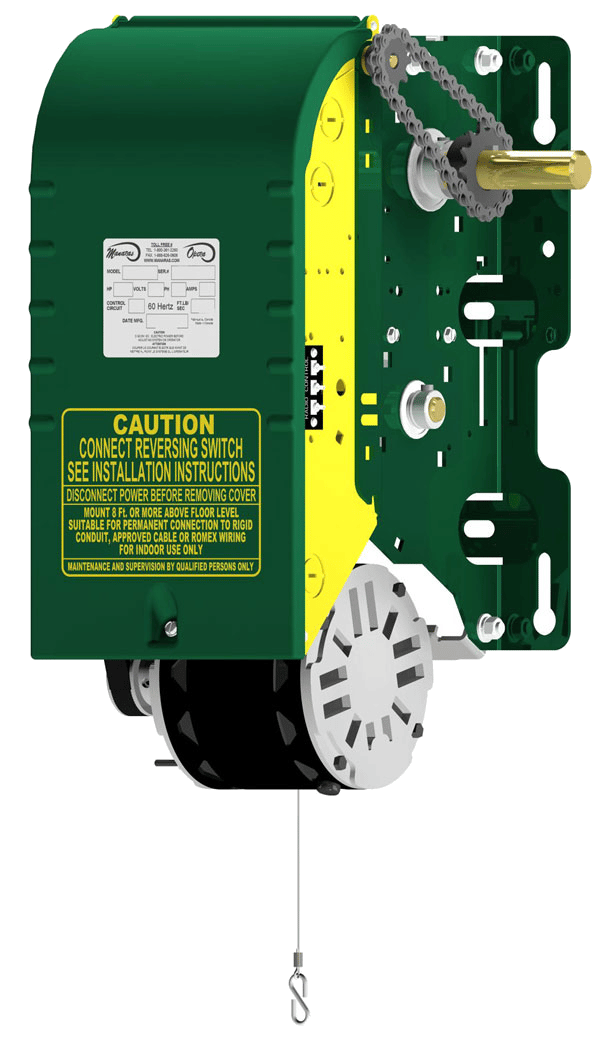

| Manaras OMJ | Jackshaft | ½ HP · 115V · 1Ø | 12 cycles/hr · 50 cycles/day | Same duty cycle as the OMH but with a standard disconnect instead of Hoist-a-Matic — the cheaper of the two. |
| Manaras OMT | Jackshaft (side-mounted) | — | — | High-speed jackshaft. Specified for cold storage and dock doors where cycle time costs money. |
| Manaras MSJ | Ceiling trolley | ¼ HP · 115V · 1Ø | 14 ft | Ceiling trolley for lighter doors up to 14 ft where there is headroom to spare. |
| Manaras OPH | Jackshaft (torsion shaft) | ½, ¾ or 1 HP | High-cycle industrial | Steps up to 1 HP and 600V three-phase for doors to 24 × 24 ft, with Hoist-a-Matic standard. |

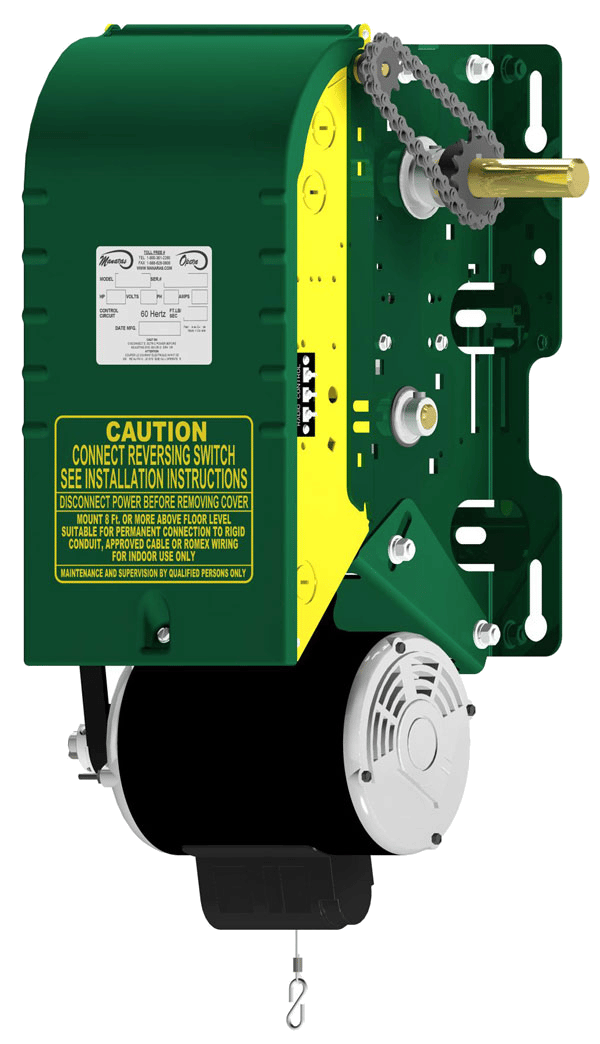

| Manaras OPJ | Jackshaft (wall-mounted) | ½, ¾ or 1 HP | High-cycle commercial | The OPH’s sibling without Hoist-a-Matic — same 24 × 24 ft capacity and voltage range. |

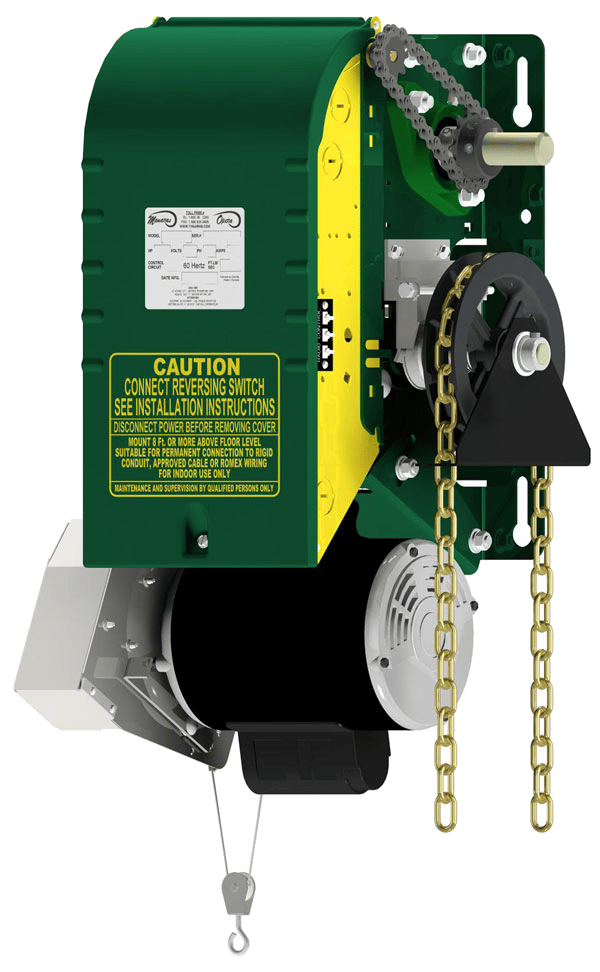

| Manaras OSH | Jackshaft with solenoid brake | 1–2 HP | — | Solenoid-brake industrial unit, 1–2 HP three-phase. This is the fire-door and heavy-industrial choice. |

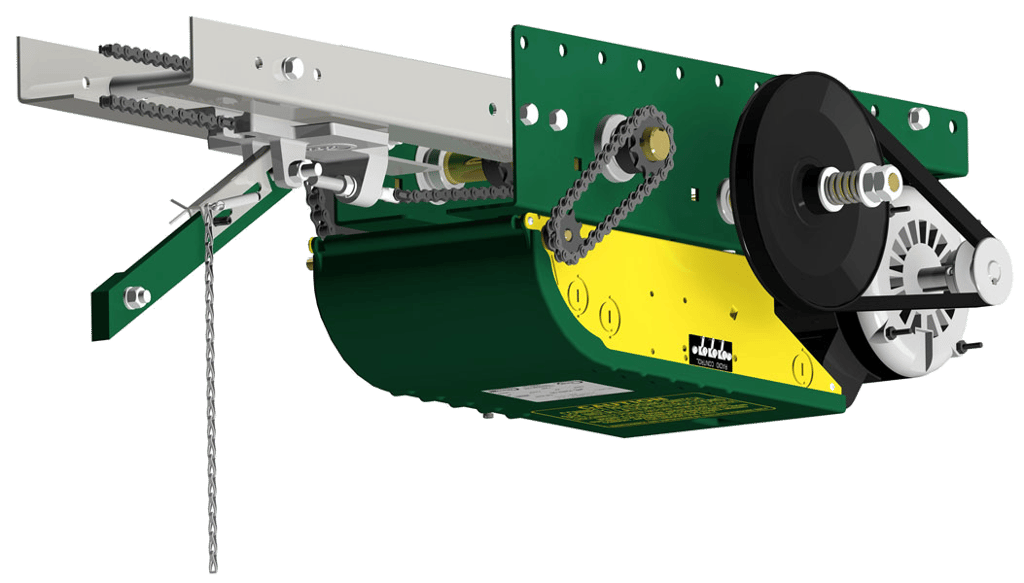

| Manaras OTH | Ceiling-mount chain trolley | ½ HP · 115V · 1Ø | Standard commercial | Heavy-duty ceiling trolley for doors to 18 ft on standard commercial duty. |

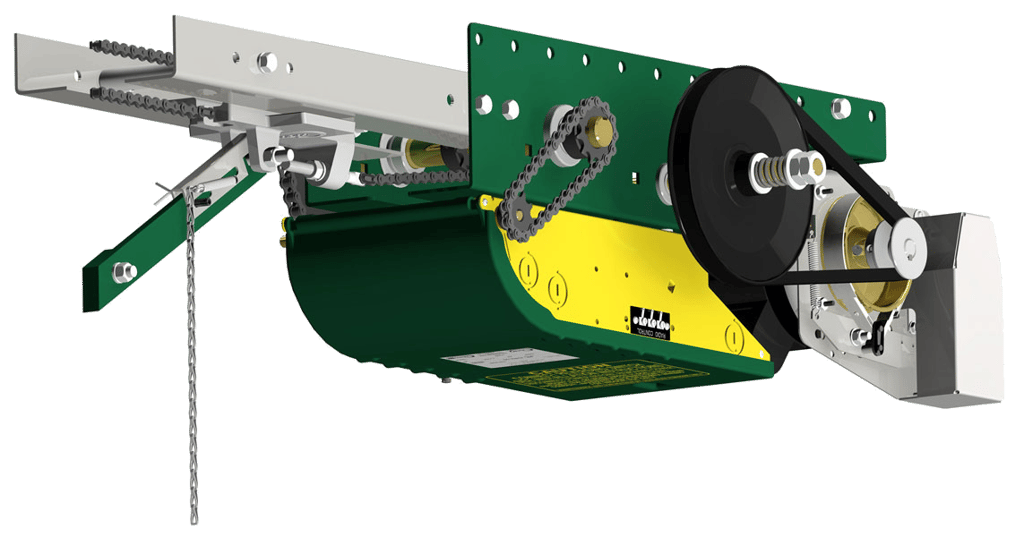

| Manaras OTBH | Ceiling-mount chain trolley + solenoid brake | ½ HP · 115V / 230V · 1Ø | High-cycle loading dock | The OTH plus a solenoid brake — specified for high-cycle loading dock doors. |
Can you get Manaras parts in Vancouver?

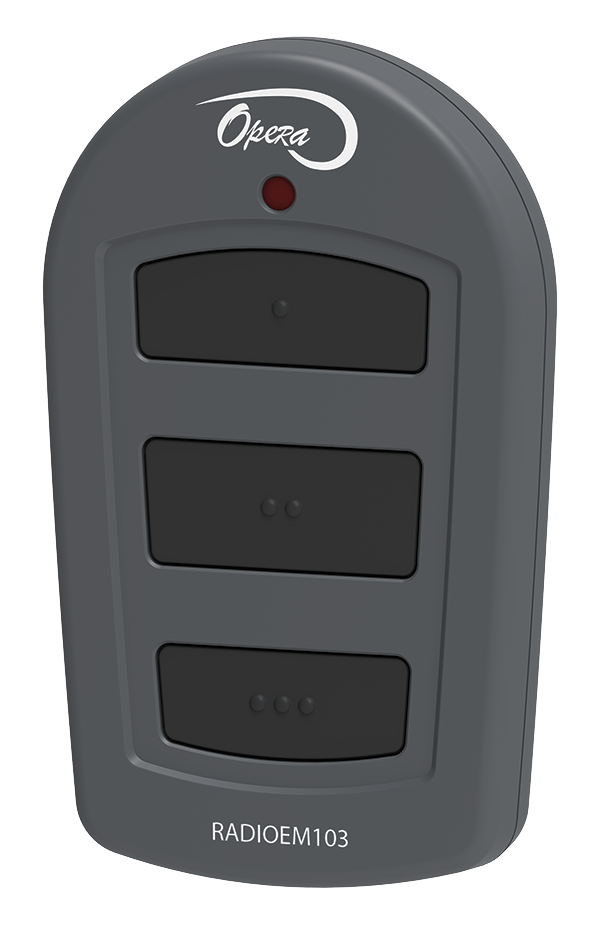

Yes. We source Manaras parts through our distributor. Control boards, clutches, solenoid coils, and limit assemblies for the Opera series are typically available within two business days. Common parts — clutches, safety edges, remotes — are on the truck.
Where can I download the PDF manual for my Manaras operator?
Every model card on this page links to the Manaras technical documents page at manaras.com/technical-documents.shtml, where installation manuals, specification sheets, wiring diagrams, and exploded-view drawings are available for all models. You can also contact Manaras directly at 1-800-361-2260.
Who does Manaras operator repair in Vancouver?
CCGDS services all Manaras Opera and MEGA series operators across Greater Vancouver and the Lower Mainland. Call 604-206-5727 for same-day or emergency repair.
Call for Manaras operator repair in Vancouver: 604‑206‑5727 — same-day response, parts on the truck, honest quote before any work starts.
