LiftMaster J, H and T
Industrial jackshaft, hoist and trolley operators, 1/3–1 HP, 25 cycles per hour and up to 90 a day.
Commercial garage door installation · Vancouver & Richmond
Commercial Garage Door Installation
New and custom commercial garage doors, built to your opening and installed by the crew that will service them afterward. Insulated steel sectional, full-view aluminum, rolling steel, loading dock and high-speed doors from Amarr, Hörmann and Raynor, paired with LiftMaster, Manaras or GDI operators, for warehouses, shops, strata parkades, fleet yards and car washes across the Lower Mainland.
- Custom sizes, built to the opening
- Old door removed and hauled away
- Operator matched to the door
- Serviced by us afterward
Pick the door type
Commercial garage door installation starts with the right door for the building, not the catalogue page. Tap a type below to see what it is, who it suits and which Amarr, Hörmann and Raynor models we install. Tap a thumbnail to swap the photo.
Insulated steel sectional doors
Best for: Warehouses, loading bays, auto shops, fleet garages, strata parkade entries — anywhere the door cycles all day and the building is heated.
- Hörmann 440U / 450U — pan or sandwich construction, polyurethane insulation, FingerGuard section joints.
- Amarr polyurethane — 2042 (20-ga, 2"), 2442 (24-ga, 2"), 2742 (27-ga, 2"), 2741 (27-ga, 1-3/8"), 2743 (27-ga three-layer, 3" polyurethane, Amarr's highest thermal rating), 2448 smooth flush; see all Amarr commercial doors.
- Amarr polystyrene / ribbed — 2432 and 2732 (2" polystyrene), 2002 and 2402 heavy-duty ribbed steel, 2502 medium-duty.
- Raynor — ThermaSeal TM200/TM220/TM224 polyurethane, TH160 thermal sectional, EnergyCore EC200/EC224 polystyrene, SteelPro hot-dip galvanized.
- Options — vision lites, pass doors, exhaust ports, high-lift or vertical-lift track, Amarr WindPro wind-load rating.
Full-view aluminum and glass doors
Best for: Showrooms, restaurants and breweries with patio openings, car dealerships, fire halls, gyms — anywhere you want daylight and a view of what's inside.
- Hörmann 720A — 1-3/4" extruded aluminum, clear-anodized glazed frames, nine glazing options.
- Hörmann 750A — 2" heavy-duty full-view aluminum for larger or harder-working openings.
- Amarr 3552 — 2" extruded aluminum full-view, stile-and-rail, with the 3502 as its sibling model.
- Raynor AlumaView — AV300 (3"), AV200 (2") and AV175 (1-3/4") rail-and-stile aluminum.
- Glazing — clear, tinted, frosted, insulated, polycarbonate or solid aluminum panels mixed by section.
Rolling steel doors, grilles and counter shutters
Best for: Parkade entries, storefronts, loading bays with no ceiling room for track, fire-rated separations, service counters and concessions.

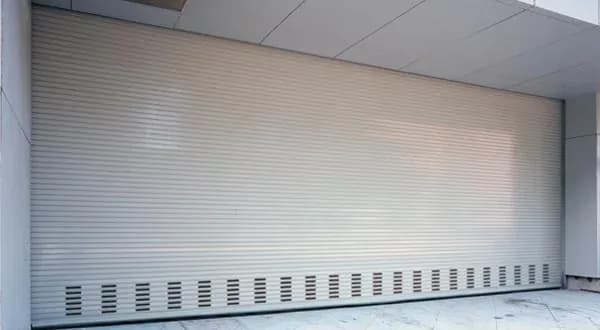

- Amarr 4000 rolling steel service door (24–18-gauge flat slats) · 4100 insulated service door (polyurethane) · 4200 UL-listed rolling fire door · 4300 rolling grille · 4400 counter shutter · 4500 fire-rated counter shutter (up to 3-hour).
- Raynor DuraCoil (five slat types; insulated flat slat) · DuraCoil HP high-cycle springless · DuraGrille · DuraShutter · FireCoil rolling fire door with fusible link.
- Amarr 5000 series rolling sheet doors — 5101 self-storage, 5501 light-duty, 5601 heavy-duty, 5652 wind-load certified.
- Operation — push-up, chain hoist, crank or motor operator; perforated or windowed slats available.
Loading dock doors and dock equipment
Best for: Distribution centres, food and cold-storage warehouses, manufacturing plants, big-box receiving docks.
- Dock doors — insulated sectional (Hörmann 440U/450U, Amarr 2742/2743, Raynor ThermaSeal) sized to the dock opening, with high-lift track where trailers back in under the header.
- Dock equipment — Hörmann dock levelers (HLS2-P hinged lip, HTL2 tapered lip, mechanical MRS-V), dock seals and shelters (DSL, Model 100/200 cushion seals), dock restraints and LED dock lights.
- Cold storage — Hörmann Iso Speed Cold 100 rigid high-speed door for freezer and chiller openings.
- Impact protection — bollards and bumpers specified with the door; see our bollards guide.
High-speed and high-performance doors
Best for: Car washes, fire halls, parkades with queueing traffic, food plants, mines and shops where the door opens hundreds of times a shift.
- Hörmann SG 5000 Speed Guardian rigid high-speed door · SG 5000 LP 42 low-profile fire-station version · SR 9000 L Elite rigid high-cycle interior door.
- Hörmann HDXL rubber roll-up for exterior openings up to 50 ft · SC 1400 Clean Master fabric cleanroom door · Iso Speed Cold 100 for cold rooms.
- Raynor RapidCoil (e.g. RC300) high-speed fabric door, about 8 ft/sec.
- Operators — paired with high-cycle GDI or Manaras drives; see the operator section below.
Which door fits my building?
Three quick answers and we'll tell you where we'd start. It is a starting point for the conversation, not a quote — the site measure decides the final spec.
Custom sizes and door replacement
A commercial door is not an off-the-shelf product. We measure the width, height, headroom, side room and backroom of the opening, check how the building is framed and what the floor does, and order the door and track to those numbers. Odd widths, extra-tall bays, low-headroom parkades and oversize openings are everyday work. Vision lites, pass doors, exhaust ports, colours and glazing are chosen with you before the order goes in.
Replacing an existing door? We take the old door, track and springs down, haul them away, repair or re-frame the jambs if the old hardware chewed them up, and install the new door on the same visit wherever the structure allows. Commercial garage door installation on an occupied building is planned around your hours so the bay is not down during business.
Want to see it first? Upload a photo of the building to the commercial door designer, line up the opening and try the door types above in your own colours. The 4K download is handy for the owners, the landlord or a strata council.
Operators matched to the door
The operator is sized to the door weight, the lift type and the daily cycle count, not bolted on as an afterthought. These are the lines we install and service; full model guides are on our operator installation page.
LiftMaster GH / GT gear-head
Heavy-industrial gear-head hoist and trolley for doors that cycle more than 90 times a day; 1/2–3 HP.
LiftMaster MJ / MH / MT
Medium-duty jackshaft, hoist and trolley, 1/2 HP 115 V, for shops that open up to 12 times an hour.
LiftMaster MAXUM DC
TDC, JDC, JHDC and RJDC DC commercial operators with built-in Wi-Fi; LJ8900W side-mount for lighter sectional doors.
Manaras OPJ / OPH / OHJ
Heavy-duty jackshaft with floor-level disconnect, Hoist-a-Matic chain hoist, or both with manual egress.
Manaras OSH / OGH
Super-duty and gear-head jackshafts with solenoid brake for doors cycling more than 80–100 times a day.

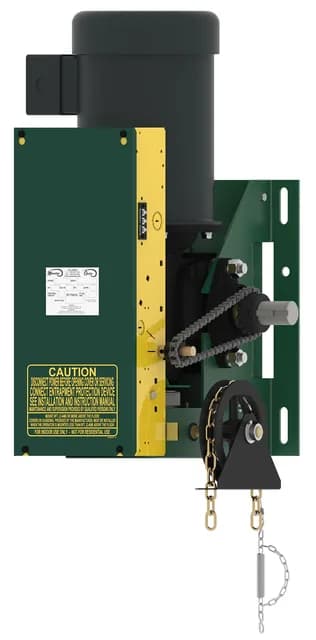

Manaras MGH / MGT
Very-heavy-duty worm-gear jackshaft up to 5 HP and industrial trolley up to 1.5 HP.
Manaras OTH / OTBH
Heavy-duty commercial trolley with 6.25" low headroom; apartment variants rated 30 cycles an hour.
GDI JDMG-LG
Commercial and medium-duty industrial operator rated 3,200 open/close cycles a day, one motor for 115–575 VAC.
GDI HAML-RBH
5,000 cycles a day, UL 325 compliant; the car-wash and high-traffic specialist.
GDI JHMG-VC
10,000 open/close cycles a day — the highest-cycle GDI model, for parkade gates and busy industrial doors.
Who we install for
Warehouses and industrial units
Insulated sectional or rolling steel doors on the bays, high-lift track where trucks back under the header, operators rated for the shift.
Loading docks and distribution
Dock doors sized to the dock, levelers, seals, shelters and restraints specified together so the opening seals when a trailer is in.
Auto, body and trade shops
Insulated sectional with vision lites, or full-view for the showroom side; medium-duty operators for a dozen cycles an hour.
Strata and commercial parkades
Rolling grilles or sectional gates with high-cycle operators, loop detectors and safety edges for resident traffic.
Fleet and truck yards
Oversize and extra-tall openings, HDXL rubber doors up to 50 ft, impact-resistant Amarr Superflex where forklifts live; hangar doors for aviation.
Car washes, fire halls, food plants
High-speed doors — Hörmann SG 5000, SR 9000, Iso Speed Cold, Raynor RapidCoil — with GDI or Manaras high-cycle drives.
How a commercial garage door installation runs
- Site measureWe come to the building, measure the opening and clearances, check framing and power, and talk through how the bay is used.
- Spec and quoteYou get a written quote listing the door model, insulation, glazing, track, operator and accessories line by line.
- OrderThe door and operator are ordered to your opening. We book the install date around your operating hours.
- InstallOld door removed and hauled away, jambs repaired if needed, new door, track, springs and operator installed and balanced.
- Test and hand-overForce and travel limits set, safety devices tested, remotes and controls programmed, and you are shown how it works.
After the install the same crew looks after the door: maintenance programs, spring replacement and 24/7 emergency repair.
Commercial garage door installation FAQ
Do you install new commercial garage doors, or only repair them?
Both. Commercial garage door installation is a core part of what we do: we measure the opening, order the door and operator to that size, remove and haul away the old door, and install, balance and test the new one. Repair, maintenance and 24/7 service continue after the install.
Can you make a custom-size commercial door?
Yes. Every commercial door we install is ordered to the opening we measure on site, so odd widths, extra height, low headroom and oversize openings are handled with the right lift type and track rather than a standard-size compromise. Hörmann HDXL rubber doors go up to 50 ft wide.
Which brands do you install?
Amarr, Hörmann and Raynor commercial doors, with LiftMaster, Manaras and GDI operators. We are a dealer for all six brands and service them afterward.
Will the new door come with an operator?
It can. We pair the operator to the door weight, lift type and how many times a day the door cycles — a LiftMaster medium-duty jackshaft for a shop that opens a dozen times a day is a different machine from a Manaras OSH or GDI JHMG-VC on a parkade gate cycling hundreds of times a day.
Can I see what a new door would look like on my building first?
Yes. Our commercial door designer lets you upload a photo of your building, line up the opening and try sectional, full-view, rolling steel and grille doors in your own colours, then download a 4K picture for the owners or strata council or send it to us for a quote.
Where do you install?
Richmond, Vancouver, Burnaby, Surrey, Delta, New Westminster, Coquitlam, Langley, North Vancouver and the rest of the Lower Mainland.
Service areas for commercial garage door installation
Vancouver is covered on this page. Each city below has its own installation page with the local building stock, the door types that fit it and the drive from our Richmond shop.
- Commercial garage door installation Richmond
- Commercial garage door installation Burnaby
- Commercial garage door installation Surrey
- Commercial garage door installation Delta
- Commercial garage door installation New Westminster
- Commercial garage door installation Coquitlam
- Commercial garage door installation Langley
- Commercial garage door installation North Vancouver
Ready to spec a new door?
Send us the opening size and a photo, or use the designer and send the picture straight from it. We quote installation across Richmond, Vancouver, Burnaby, Surrey, Delta, New Westminster, Coquitlam, Langley and North Vancouver.
