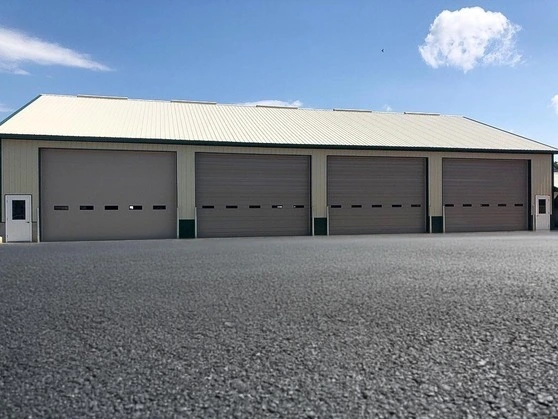

Raynor ReliableMax 1000 Commercial Door Vancouver
What the ReliableMax 1000 Is
The Raynor ReliableMax 1000 is a medium-duty commercial sectional door built for buildings that need insulation and durability but do not run a door every five minutes. It comes with 2-inch EPS polystyrene insulation rated at R-8.0 and a 25-gauge galvanized steel skin.
Medium-duty is the key phrase here. This door is not a light residential unit, but it is also not built to take the abuse of a loading dock hitting fifty cycles a day. It fits the space between those two worlds — strata parkades, light industrial bays, storage warehouses, any semi-conditioned commercial space where the door opens a few dozen times a shift and the building owner wants the heating bill under control.
What the Specs Mean for Your Building
The R-8.0 insulation in a 2-inch panel does real work. In a Vancouver strata parkade, that means the stairwell and corridor temperatures stay closer to conditioned air in January. It cuts the drafts that make the first-floor suites cold and the hallway heating run longer than it should. For a light industrial bay, it keeps the space warm enough that workers do not stand in a wind tunnel every time a truck pulls out.
The 25-gauge steel is the standard skin for this class of door. It is not the heavy-gauge material you would spec for a loading dock that takes forklift bumps daily. But for a parkade or a storage bay, where the main risk is weather and incidental contact, 25-gauge holds up fine. The galvanizing matters in Metro Vancouver — coastal damp and the salt air near the Fraser River and port areas will rust an uncoated door in a few years. Galvanized steel buys you years before corrosion starts.
The EPS core is closed-cell polystyrene. It does not absorb water, which matters in a climate where a door gets rained on directly. It also gives the panel rigidity. An insulated door that is not stiff enough will oilcan — the skin buckles and wavers in the sun. The 2-inch EPS core prevents that.
Where It Fits and Where It Does Not
The ReliableMax 1000 suits buildings where the door runs maybe thirty to sixty cycles a day. Strata parkades. Light assembly shops. Storage warehouses. Retail back-of-house bays. Anywhere the door is opened by tenants, delivery drivers, or staff on a regular schedule but not hammered all shift.
It is the wrong choice for a high-traffic loading dock. If your operation runs a door a hundred times a day with trucks backing in and pallet jacks scraping the bottom panel, you need a heavy-duty door with thicker steel and heavier track. Look at the Raynor commercial line or an Amarr heavy-duty model for that.
It is also not the right door for an unheated exterior bay that sees no insulation benefit. If the space is unconditioned and the door just keeps weather out, a non-insulated door costs less and does the same job. The R-8.0 is wasted money there.
What Fails and What to Watch For
On a medium-duty insulated door, the common failure points are consistent across the class. The bottom weatherseal takes the most abuse — it drags on the floor, gets stiff in cold weather, and eventually tears. In Vancouver, the freeze-thaw cycles in January and February make the seal brittle faster than in a dry climate. Check it every spring and replace it when it stops sealing flat.
The hinges and roller brackets on a 25-gauge door are less forgiving than on a heavy-duty door. If a panel gets dented or a hinge bracket bends from a hard bump, the door will track unevenly and bind. The early symptom is a scraping sound at one side as the door lifts. Do not let that go — a binding door wears out cables and springs fast.
The torsion springs on a medium-duty door are sized for the cycle count. There is no published cycle rating for this model, but a technician reading the spring gauge and wire size at installation can estimate the lifespan. In a strata parkade running thirty cycles a day, plan on spring replacement somewhere in the three- to five-year range. If you hear a creak or pop at the top of the lift, call it in. A snapped spring on a sectional door locks the door in place and requires a service call to get it open.
What Ordering and Installing Involves
The ReliableMax 1000 requires standard headroom for a sectional door — about 12 to 15 inches above the opening for the track radius and operator mount. If your building has low headroom, a low-headroom track kit is available, but you need to confirm the clearance before ordering. Measure from the top of the opening to the nearest obstruction.
Side clearance matters too. The vertical track needs about 3.5 inches on each side of the opening. If your jamb is tight against a wall or column, the door may not fit without modifying the framing.
Have the exact opening dimensions — width and height — measured in three places: top, middle, bottom. Old buildings shift. If the opening is not square, the door needs to be built to the actual dimensions, not the blueprints.
Call CCGDS for a site inspection. The right door for your building depends on the opening, the traffic, and the structure. We handle the ReliableMax 1000 across Vancouver, Richmond, Burnaby, Surrey, and the rest of Metro Vancouver.
